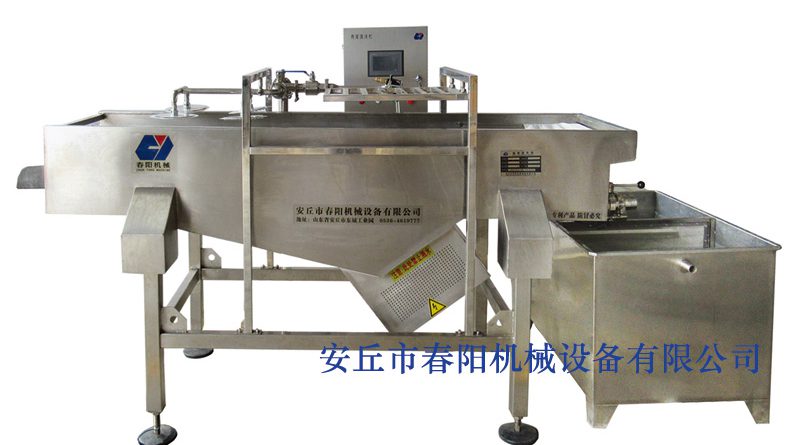

振動清洗機（燕窩清洗機）
BIRD’S NEST CLEANING MACHINE
燕窩清洗機是我公司根據天然燕窩的特性，經過不斷改進，研發出的最新產品,設備除電機、地腳盤外均采用不銹鋼耐腐蝕材料制作，完全符合出口食品衛生要求。
Bird’s nest cleaning machine is the latest product developed by our company according to the characteristics of natural bird’s nest and through continuous improvement. The equipment is made of stainless steel corrosion-resistant material except motor and footplate, which fully meets the requirements of export food hygiene.
設備原理 Principle of Equipment
洗燕機通過電機振動，形成強烈水流，通過水流振動使燕窩呈翻滾、跳躍狀態，從而使燕窩與雜質分離，沉淀物落到篩網底部通過排水口流入循環水箱廢料袋，方便二次挑選。出料通過高壓噴淋對燕窩再進行二次清洗，燕窩清洗效果更好。
Sher vibrates through the motor to form strong water flow, which makes the bird’s nest roll and jump, so that the bird’s nest and impurities are separated, and the sediment falls to the bottom of the screen and flows into the waste bag of the circulating water tank through the drainage port, which is convenient for second selection. The bird’s nest is cleaned by high pressure spraying, and the effect of bird’s nest cleaning is better。
設備特點Equipment characteristics

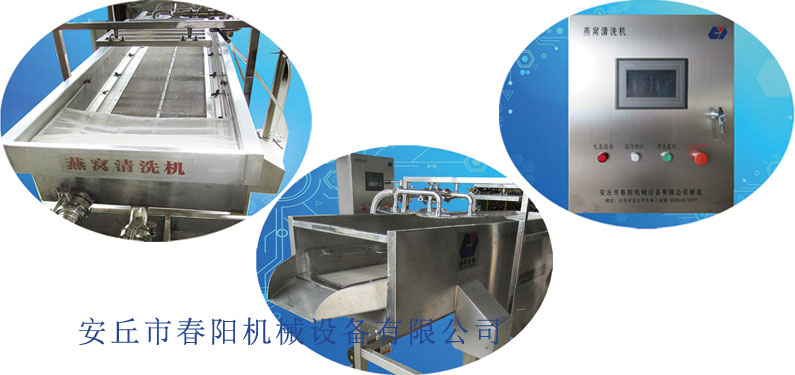

1.智能化控制 Intelligent control
觸摸式操控面板，智能操作更便捷；觸摸屏、PIC\變頻器等電器件均采用國際知名品牌
Touch control panel, intelligent operation is more convenient; Touch screen, PIC\ frequency converter and other electrical appliances are using internationally renowned brands.
2. 結構簡單，性能可靠Simple structure and reliable performance
該機器適于連續作業，運行穩定，故障率低，
The machine is suitable for continuous operation with stable operation and low failure rate.
3. 低能耗 高效率Low energy consumption and high efficiency
設備運動結構簡介合理，功率匹配到位，能耗低，效率高
The motion structure of the equipment is reasonable, the power matching is in place, the energy consumption is low and the efficiency is high.
4. 安裝便捷，維護方便 Easy installation and maintenance
管道連接全部采用快裝結構，維護簡單
Fast-fitting structure is adopted for all pipeline connections, which is easy to maintain.
5. 易清洗，更衛生Easy to clean, more sanitary
篩網采用快裝方式，拆卸更方便；設備帶高壓水槍，衛生清理更便捷
The screen adopts quick-loading mode, which makes disassembly more convenient, and the equipment with high-pressure water gun makes sanitary cl
設備規格及主要參數
Equipment specifications and main parameters
| 型號Model | XYJ560 | XYJ660 | XYJ760 |
| 電機功率Motor power | 0.8kw | 1.5kw | 2.0kw |
| 水泵功率Pump power | 1.0kw | 1.5kw | 2.0kw |
| 外形尺寸Shape size | 主機2500*1050*1400mm水箱1000*750*700 mm | 主機2500*1050*1400mm水箱1000*750*700 mm | 主機2500*1050*1400mm水箱1000*750*700 mm |

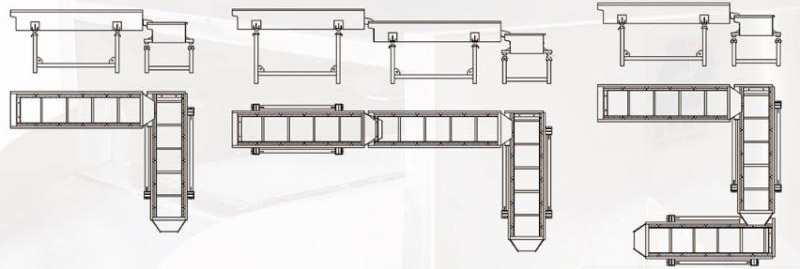

多聯動自由組合：直列式、L型組合 U型組合等根據客戶場地要求自行排列。
Multi-linkage free combination: In-line combination, L-type combination U-type combination, etc. are arranged according to customer site requirements.
